    Diesel Type Concrete Delivery Pump Yellow Color

    Ask Lasest Price
    Brand Name : kemasen
    Model Number : K5L-120H/0866RS
    Price : Negotiable
    Payment Terms : T/T、L/C、D/A、D/P
    Supply Ability : 3pcs/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

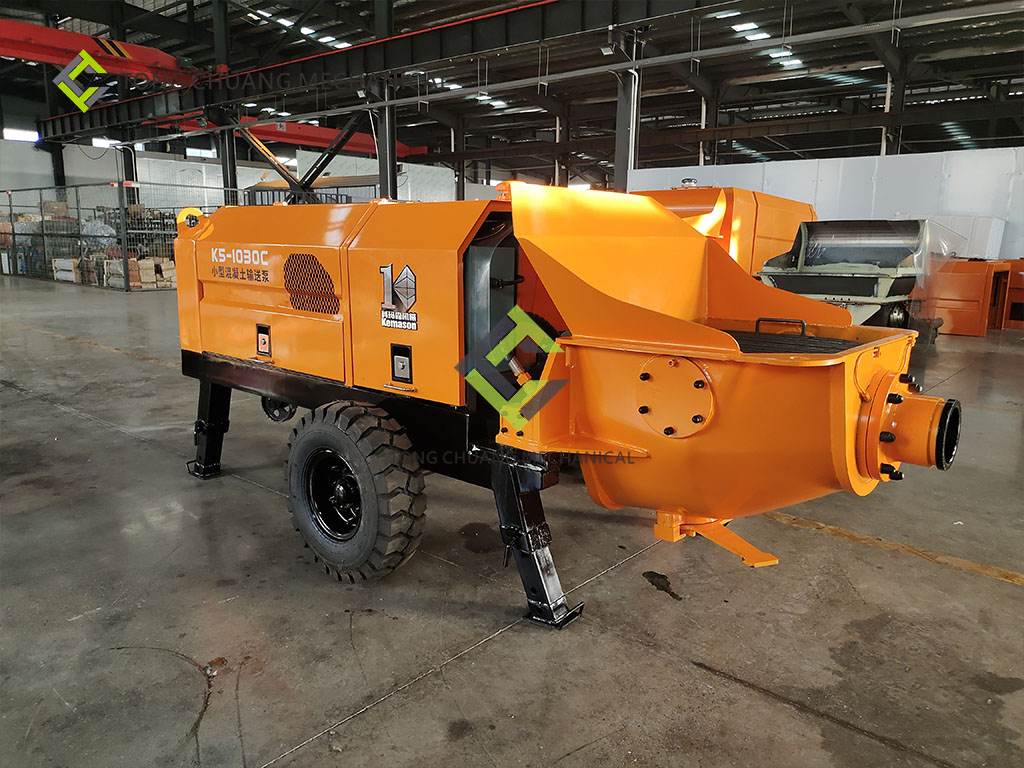

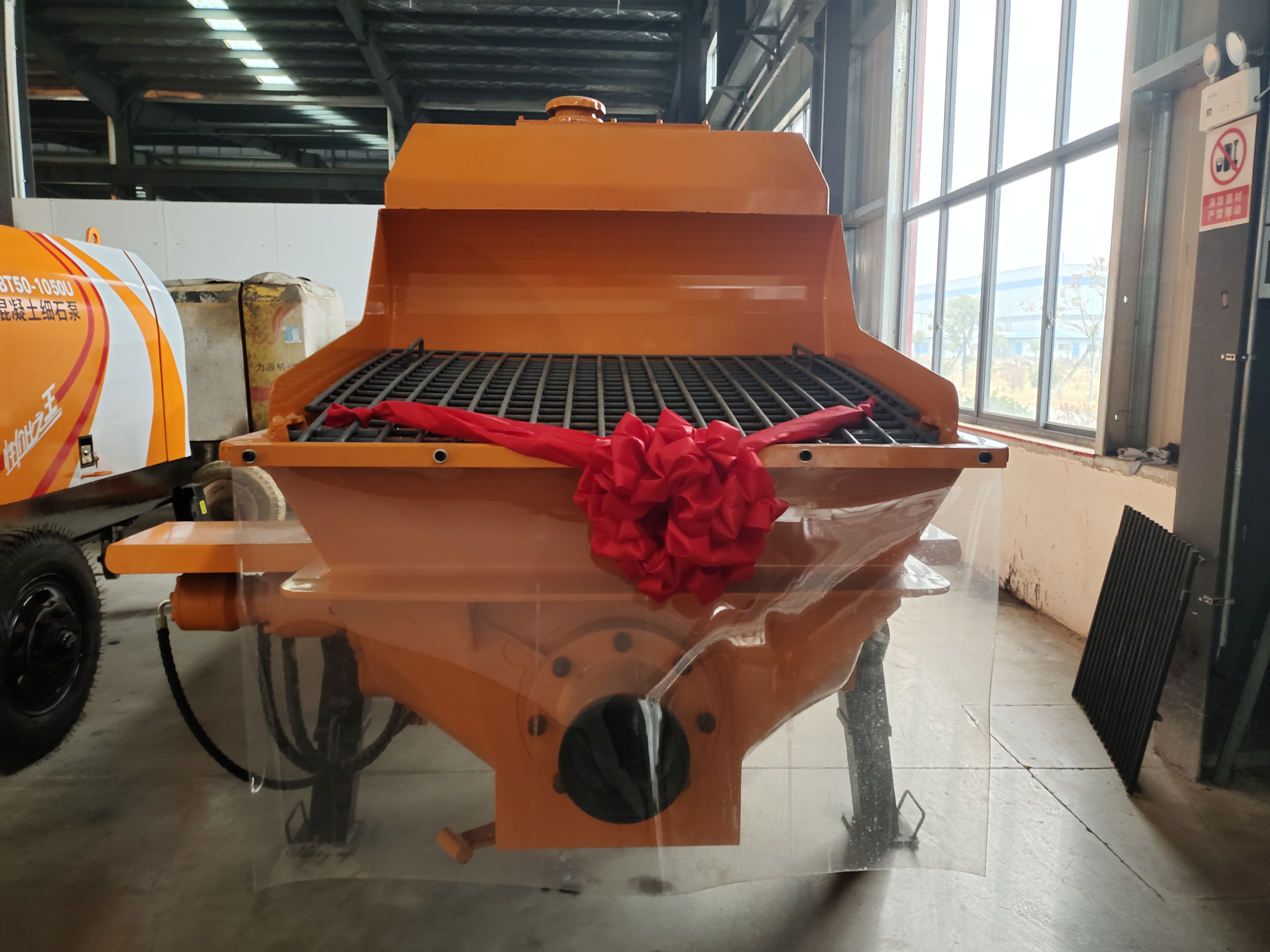

    Diesel Type Concrete Delivery Pump Yellow Color

    Diesel Type Concrete Delivery Pump

    Product features and advantages:

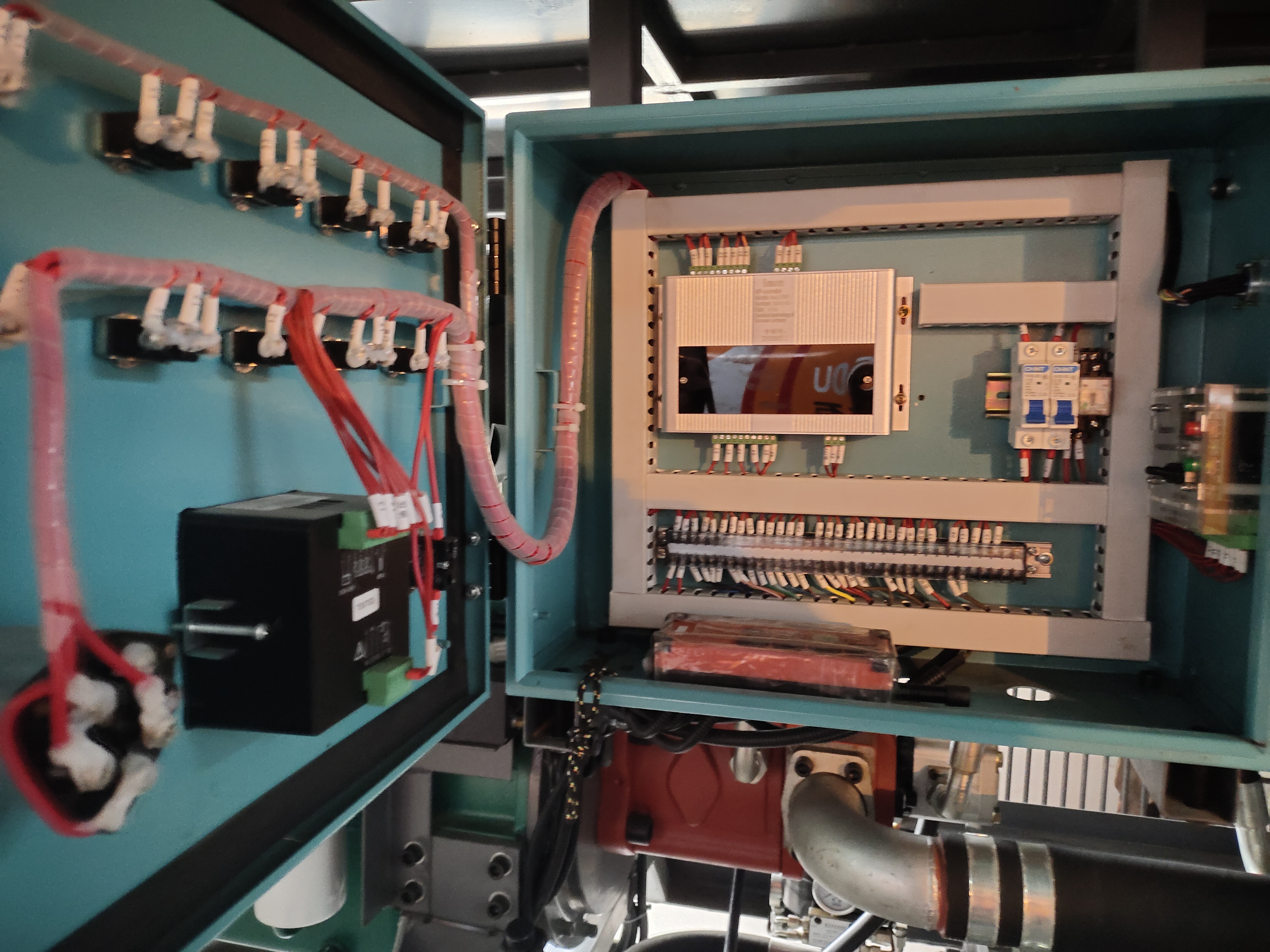

    1: Anti-electrical failure, new industrial controller, patent number: ZL201920260537.X, one-button intelligent pumping Adopt three- dimensional compression molding hopper, no material accumulation, no deformation, easy to clean

    2: High-rise concrete pumping, underground garage, square, factory wear-resistant ground concrete, secondary structural column fine stone concrete pouring pumping

    product configuration(K5L-120H/0866RS)

    Pump system parameter information

    name

    contents of a project

    unit

    parameter

    Complete performance

    Theoretical pumping distance is vertical / horizontal

    m

    60/300

    Maximum concrete delivery capacity

    m3/h

    40


    Theoretical concrete conveying pressure

    Mpa

    8

    Distribution valve form

    /

    S- Valve

    Concrete cylinder specifications

    mm

    D180

    Hopper volume x feeding height

    L ×mm

    300×1200

    Discharge outlet diameter

    mm

    180

    dynamical system

    (Yuchai) Diesel engine

    Kw

    66

    hydraulic pressure system

    Main oil pump power

    Mpa

    K5V140S

    Hydraulic system form

    Mpa/L

    Single pump hydraulic sequence unit set + inlet WINNER overflow valve + inlet PARKer Pike control valve (28 Mpa, 250L)

    cooling-down method

    /

    Air cooling radiator

    Other parameters

    Maximum concrete diameter

    mm

    10-35

    * Note: Technical solutions can be provided according to customer needs, and different export pressure models can be selected when purchased.
