    In 2012 Sany Heavy Industry Remanufacture Second Hand Concrete Pump Truck 46meters

    Ask Lasest Price
    Brand Name : SANY
    Model Number : SY5310THB40B 46
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T
    Supply Ability : 2pcs/month
    Delivery Time : 25 day
    • Product Details
    • Company Profile

    In 2012 Sany Heavy Industry Remanufacture Second Hand Concrete Pump Truck 46meters

    In 2012, Sany Heavy Industry Remanufacture,Second-Hand Concrete Pump Truck 46meters

    • Product features and advantages:

    1. SY5310THB40B46 five-section RZ type boom, flexible fabric and wide range;
    2. X-shaped legs, which can achieve unilateral support, are suitable for construction in narrow workplaces; Anti rollover control technology improves the intelligent level of pump trucks and enhances safety during operation;
    3. Intelligent buffer control system, less reversing impact;
    4. The pumping capacity reaches 170m3/h, with stepless regulation to meet various working conditions;
    5. Computer energy-saving control, automatic power matching, average energy saving of 20%;
    6. The unique SYMC dedicated controller makes the system run more reliably.
    Pump truck parameter information
    Chassis modelBENZ Actros 3341
    Wheelbase (mm)2020+4280+1350
    Maximum engine power kW/(r/min)300/1800
    Engine modelOM501LA.Ⅲ/17
    Vehicle mass (Kg)32800
    Overall dimensions of the whole vehicle (length x width x height) mm11750*2500*3970
    Theoretical volume of concrete (low pressure/high pressure) (m3/h)170/120
    Theoretical pumping pressure (low/high pressure)(MPa)8.3/12
    Hydraulic system typeOpen system, dual A11VLO190 main oil pump
    Delivery cylinder260*2145
    Vertical height of boom(m)46
    Horizontal length of boom(m)41
    After serviceMore than 10 years of professional service engineer free online support, video support! Accessory support!

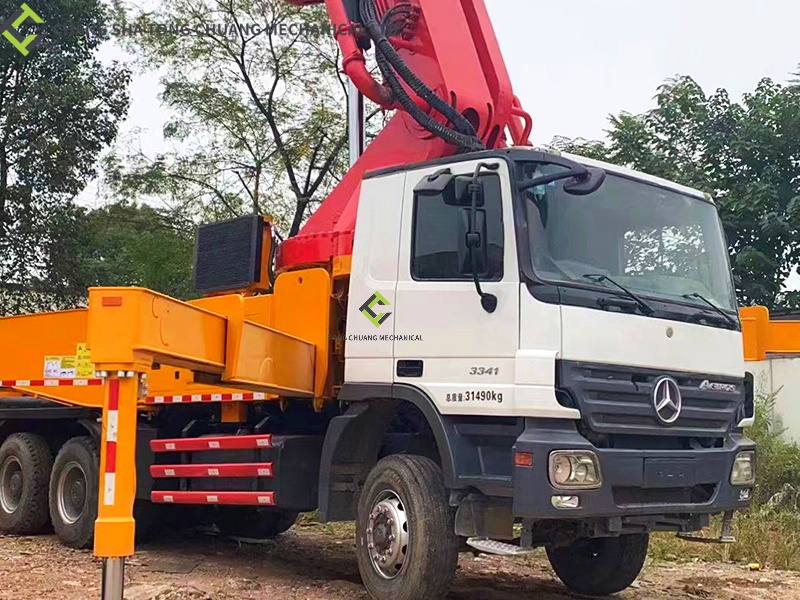

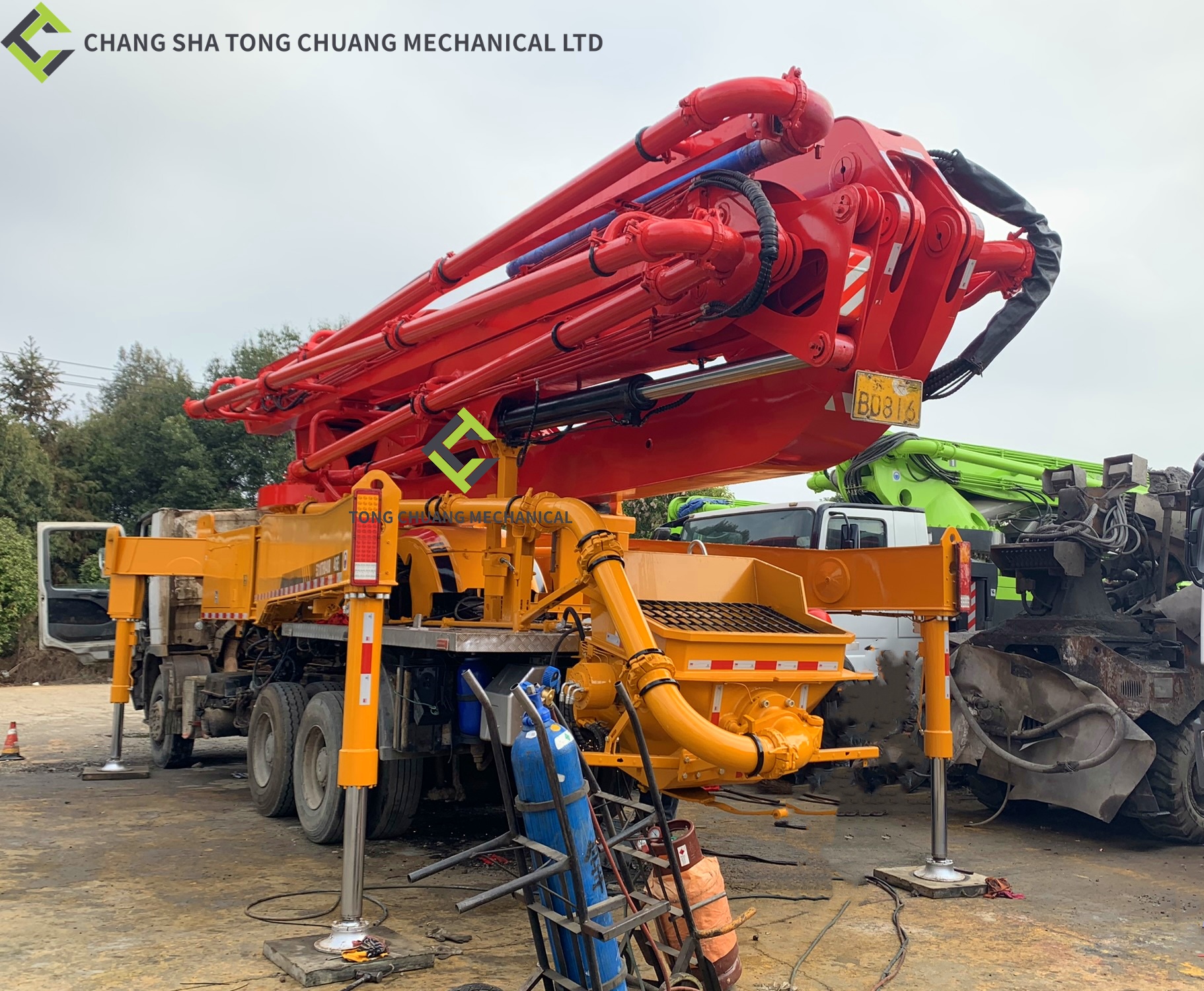

    • The picture of the pump truck is as follows:


    Quality In 2012 Sany Heavy Industry Remanufacture Second Hand Concrete Pump Truck 46meters for sale
