    Zoomlion Heavy Industry Second Hand Concrete Pump Truck 59m Zlj5442thbbe 59x-6rz

    Ask Lasest Price
    Brand Name : Zoomlion
    Model Number : ZLJ5442THBBE 59X-6RZ
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T
    Supply Ability : 4pcs/month
    Delivery Time : 15day
    • Product Details
    • Company Profile

    Zoomlion Heavy Industry Second Hand Concrete Pump Truck 59m Zlj5442thbbe 59x-6rz

    2021 Zoomlion Heavy Industry 59m Zlj5442thbbe 59x-6rz Second-Hand Concrete Pump Truck


    Zoomlion Heavy Industry Concrete Pump Truck parameter information

    Chassis modelArocs 4143 8X4
    Specification and modelZLJ5442THBBE 59X-6RZ
    Arm structure form59X-6RZ
    Vertical height of boom58.1 m
    Vehicle mass43870kg
    Overall dimensions of the whole vehicle (length x width x height)14690*2530*4000
    Maximum theoretical conveying capacity (Low pressure/high pressure)200/140 m³/h
    Maximum outlet pressure of concrete (Low pressure/high pressure)8.3/12Mpa
    Hydraulic system typeClosed
    Maximum fabric (height/radius/depth)58.1/52.9/41.7 m
    After-sale service:More than ten years of professional service engineer free online support and video support! Accessories support!

    Product features and advantages

    The special function of this vehicle model is to pump concrete, and the special device is the concrete pumping unit, support legs, and distribution rods (boom, concrete pipe); Maximum net power of the engine: 315kW; The first and second axle tires are 385/65R22.5; The third and fourth axle tires are 315/80R22.5; Rearward 2000mm; The material used for the side protection device of the vehicle is aluminum alloy, and the connection method is to connect the bracket with bolts, and the bracket is connected to the chassis beam with bolts; The rear dedicated device structure has the function of rear lower protection device, with a height of 495mm from the ground; The ABS model is EB5006, and the ABS manufacturer is WABCO.

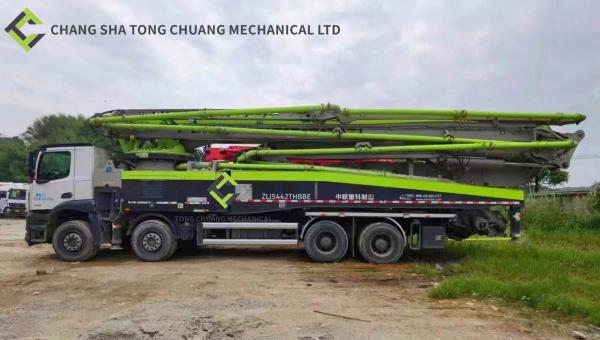

    The pictures as follows:


    Quality Zoomlion Heavy Industry Second Hand Concrete Pump Truck 59m Zlj5442thbbe 59x-6rz for sale
