    In 2014 Sany Heavy Industry Used SY5190THB25 Concrete Pump Truck

    Ask Lasest Price
    Brand Name : SANY
    Model Number : SY5190THB25
    Price : Negotiable
    Payment Terms : T/T、L/C、D/A、D/P
    Supply Ability : 1pcs/month
    Delivery Time : 8days
    • Product Details
    • Company Profile

    In 2014 Sany Heavy Industry Used SY5190THB25 Concrete Pump Truck

    In 2014 Sany Heavy Industry Used SY5190THB25 Concrete Pump Truck

    Product features and advantages:

    1: Manufacture date: 2014

    2: Pump working time: 5526 hours

    3: conveying square quantity of concrete: 92052 cubic meters 4:Very favorable prices for sale



    Pump tuck parameters

    Unit type

    SY5190THB25

    Engine model

    HINO P11C-UH

    Vehicle Weight (kg)

    18900

    Dimensions(L*W*H)​

    10000*2550*3860mm

    Chassis

    SANY

    Quantity of concrete delivered

    92052cubic meters

    Engine Power​(kW)

    240

    maximum speed

    90km/h

    Vertical Reach

    25meters

    Horizontal Reach

    21meters

    Pump system parameter information
    Low pressure theoretical displacement of concrete(m³/h)100Max Output Pressure (Mpa)16
    Hydraulic systemopen typeConcrete cylinder cylinder diameter stroke (mm)200*1800
    Arm frame, support leg parameters
    Vertical depth of boom10.8mMinimum unfolding height6.4m
    Length of the first arm6500mmAngle of the first arm93°
    Second arm length4650mmSecond arm angle180 °
    Third arm length4650mmThird arm angle245 °
    Fourth arm length5000mmFourth arm angle245 °

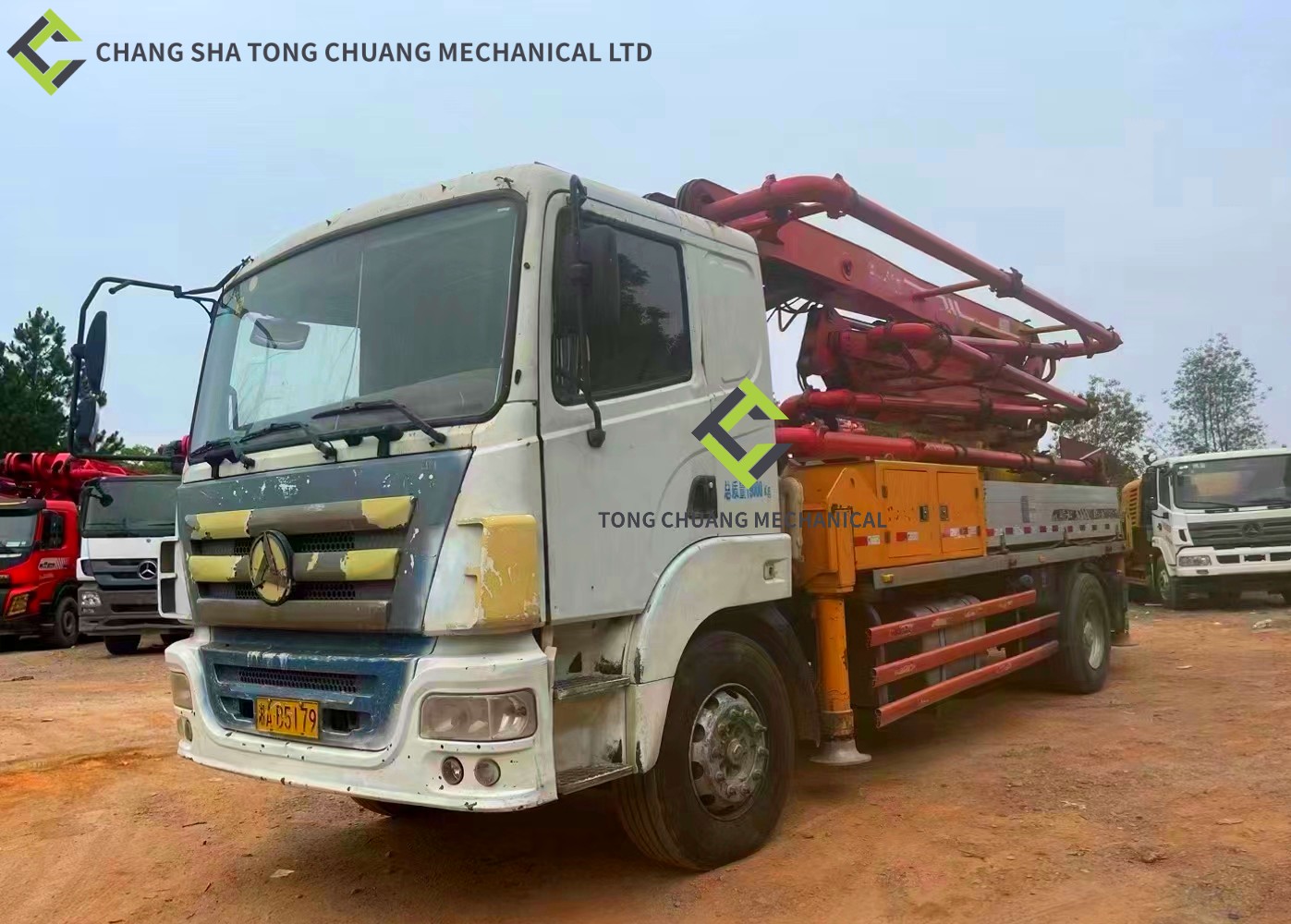

    The pictures as follows:
