Brand Name : | Germany HAWE |
Model Number : | -32 O 63/63/EA2 |
Price : | $460-495 |
Payment Terms : | D/P, T/T |
Supply Ability : | 100 Pieces/month |
Delivery Time : | 7 work days |

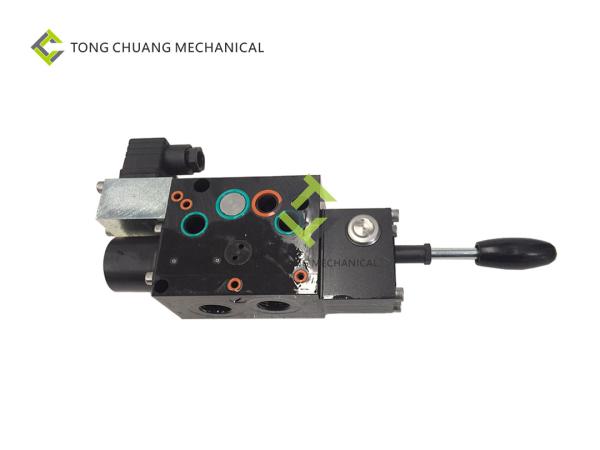

Sany Concrete pump parts HAWE Multi-unit valve block -32O63/63/EA2
Sany Concrete pump parts HAWE Multi-unit valve block -32O63/63/EA2 | |
Name | Multi-unit valve block |
Product name | Multi-way valve |
Place of origin | Germany |
Brand name | Germany HAWE |
Applicable model | Putzmeister, Foton, Zoomlion, Sany, Schwing concrete pump truck |
Specifications and models | -32 O 63/63/EA2 |
Specification size | 300*100*150mm |
Weight | 4KG |
Applicable medium | Hydraulic oil |
Applicable temperature | -20~+120 (℃) |
Nominal pressure | 42MPa |
Quality assurance | 3 months |
Flow | Qmax 80(120)L/min |
Working pressure | Pmax 420bar |
Supply capacity | 100 Pieces/month |
Packing | Export standard packing 300*100*150mm |
Minimum order | 1 |
Price | $460-495 |
Product features and advantages:
1,Excellent sealing performance
2,High control precision and sensitive action.
3,Widely used, favored by Sany Heavy Industry, Zoomlion, Xugong
Group, Putzmeister, South Korea JUNJI and other host manufacturers.
Maintenance method:
1,The hydraulic oil must be kept clean, otherwise the control spool
of the multi-way valve will be stuck, which will lead to
misoperation of the boom or rotating parts.
2,Ensure that the temperature of hydraulic oil is below 80℃,
otherwise the sealing ring of multi-way valve will be damaged,
resulting in oil leakage and failure of various control functions.
![]() |
