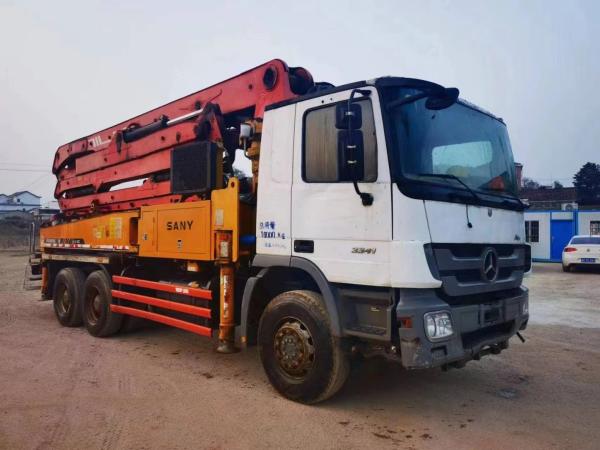

    2014 Sany Heavy Industry 38 Meters Mercedes Benz Second Hand Concrete Pump Truck

    Ask Lasest Price
    Brand Name : Sany heavy industry
    Model Number : SY5295THB 380C-8
    Price : Negotiable
    Payment Terms : T/T、L/C、D/A、D/P
    Supply Ability : 4pcs/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    2014 Sany Heavy Industry 38 Meters Mercedes Benz Second Hand Concrete Pump Truck

    Product features and advantages:

    1:Self locking function of quick release independent double mixing device, the mixing device adopts high torque steel ball plunger motor.
    2:With the function of automatically withdrawing the piston, it is convenient and fast to check and replace the piston.

    3:SYMC integrated controller with independent property right and SYLD display screen are adopted, which has faster operation speed and higher protection performance than PLC control.

    4:The patented waterproof sealing technology of the main oil cylinder is set with a high-pressure buffer zone to effectively prevent the emulsification of hydraulic oil


    Chassis parameter configuration
    modelSY5295THB 380C-8Model abbreviationSY5295THB
    Vehicle Weight (kg)

    28800KG

    Dimensions(L*W*H)​(mm)11380*2500*3990
    ChassisBENZ Actros 3341engine typeOM501LA. Ⅲ /17
    Engine Power​(kW)300kW/1800rpmEmission StandardEuro Ⅲ
    braking length≤ 10m/30km/houtput volume11.946 L
    Colorred+ whitemaximum speed

    80km/h


    Pump system parameter information
    Vertical Reach38metersHorizontal Reach34meters
    Main oil pump brand

    Rexroth

    Main oil pump modelA11VLO190LRDU2/11R-NZD12K02
    Max Output Quantity(Low / High Pressure) (m³ / h)140/100 m³ / hMax Output Pressure(Low / High Pressure)(Mpa)8.3/12 Mpa
    Theoretical pumping times (low / high pressure) (times / min)23.5/16.5 t/minConcrete cylinder cylinder diameter stroke (mm)260×2145
