    4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery

    Ask Lasest Price
    Brand Name : Domestic
    Model Number : Z10W/Z12W/Z14W
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100pcs/month
    Delivery Time : 7days
    • Product Details
    • Company Profile

    4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery

    Product Decription

    The platform height of the liquid driven scissor type aerial work platform is lower than that of the arm type aerial work platform, reaching up to 5.8-13.8 meters. Powered by batteries, more environmentally friendly. Due to the absence of exhaust emissions or loud noise during operation, they are very suitable for indoor operation.

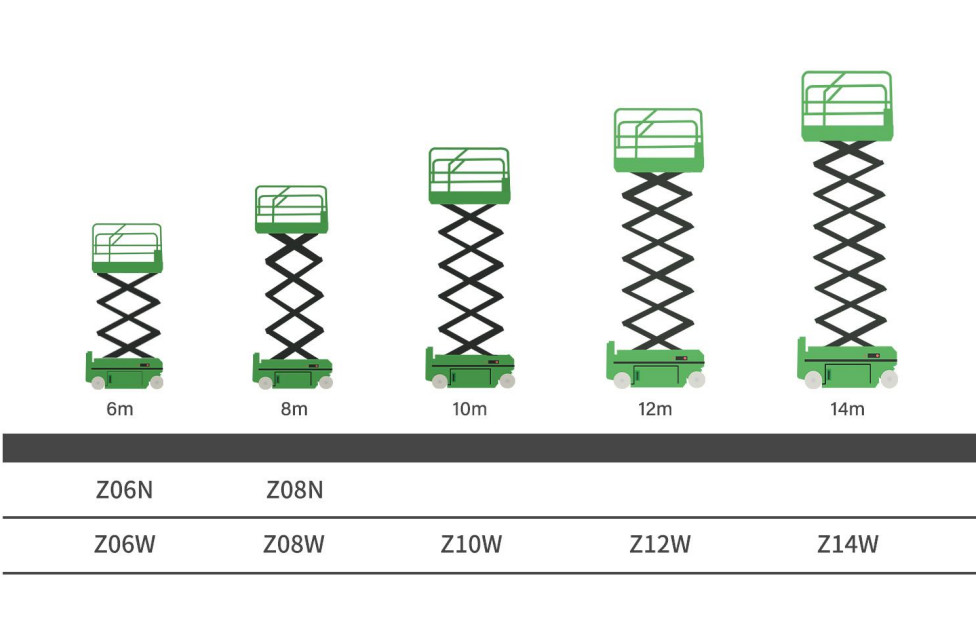

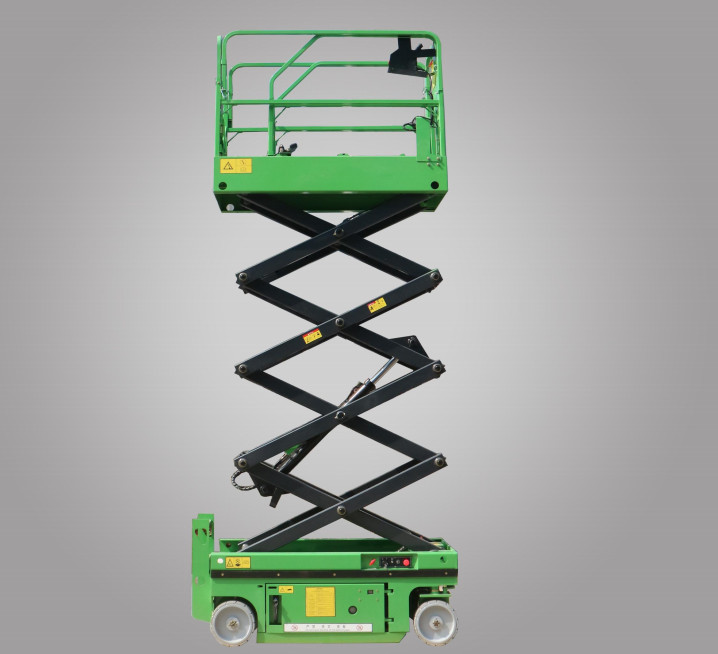

    Product Picture

    4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery
    4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery

    ModelZ10WZ12WZ14W
    Size
    Maximum working height11.8m13.8m15.8m
    Maximum platform height9.8m11.8m13.8m
    Platform length2.27m2.27m2.7m
    Platform width1.12m1.12m1.11m
    Vehicle length2.43m2.43m2.85m
    vehicle width1.21m1.21m1.31m
    Overall height (unfolded national fence)2.47m2.6m2.6m
    Overall height (folded fence)1.93m2.06m2.06m
    platform extension size0.9m0.9m0.9m
    wheelbase1.87m1.87m2.24m
    Ground clearance (retracted/raised)0.11m/0.02m0.11m/0.02m0.12m/0.02m
    Performance
    Maximum number of employees222
    Safe working load450kg320kg230kg
    Extended platform security workload113kg113kg113kg
    Driving heightHigh altitude drivingHigh altitude drivingHigh altitude driving
    Maximum climbing ability (retracted)25%25%25%
    Inner/outer turning radius0/2.2m0/2.2m0/2.5m
    Increase/decrease speed3-5m/min3-5m/min3-5m/min
    Drive mode4×24×24x2
    Tire typeSolid seamless tireSolid seamless tireSolid seamless tire
    Tire sizeφ381×127mmφ381×127mmφ381×127mm
    Power
    Battery24V/200Ah24V/200Ah24V/240Ah
    Charger24V/36A24V/36A24V/36A
    Hydralic System
    Hydraulic oil capacity20L25L30L
    Weight
    Total Weight2550kg2900kg3570kg
    4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery
