    High Altitude Work Platform for Construction Equipment 3760kg Electric Curved Arm in Green

    Ask Lasest Price
    Brand Name : Domestic
    Model Number : V12M
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100pcs/month
    Delivery Time : 7days
    • Product Details
    • Company Profile

    High Altitude Work Platform for Construction Equipment 3760kg Electric Curved Arm in Green

    Product Decription

    The maximum working height of the electric articulated boom high-altitude work platform is 11.5 meters to 22.5 meters, and the maximum load is 350 kilograms. The design of the battery and the arm style structure provide a sustainable and flexible solution for entering elevated areas. According to your work needs, lithium batteries and lead-acid batteries can be optionally equipped.

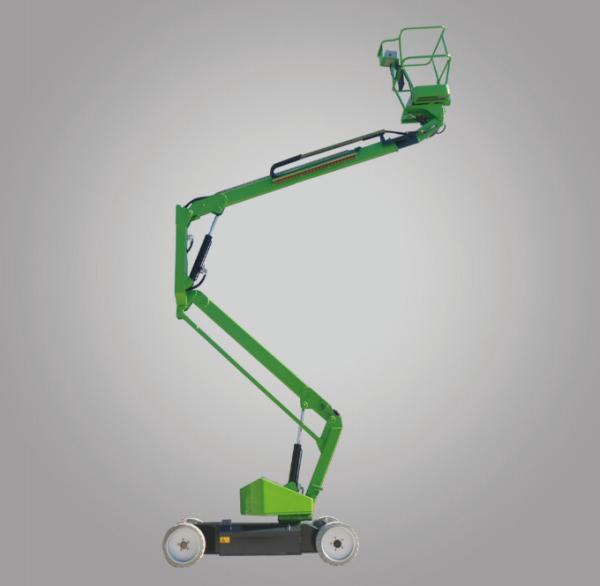

    Product Picture

    High Altitude Work Platform for Construction Equipment 3760kg Electric Curved Arm in Green

    High Altitude Work Platform for Construction Equipment 3760kg Electric Curved Arm in GreenHigh Altitude Work Platform for Construction Equipment 3760kg Electric Curved Arm in Green

    Product parameters

    ModelV12M
    Type
    Maximum working height13.5m
    Maximum platform height11.5m
    Maximum crossing height5.4m
    Maximum homework radius5.63m
    Platform size (length x width)1.26*0.712m
    Vehicle Length - Collection4.04m
    Vehicle width1.50m
    Vehicle Height - Collection2.05m
    wheelbase2m
    Ground clearance room (center)0.12m
    Performance
    Rated bearing capacity215kg
    Number of people supported by the platform2
    Platform rotation range±90°
    Rotary table rotation360 ° discontinuous
    Lifting speed of work platform85~100s
    Decrease speed of work platform70~85s
    Driving speed (highway)4-5km/h
    Driving speed (low speed)0.8-1.2km/h
    Maximum height of the driving platform11.5m
    Maximum climbing gradient36%
    Whole machine weight3760kg
    power
    Battery8×6V(220Ah)
    Charger48V/30A
    Tire specifications23*10*16()/22*9*16()
    Tilt warning angle2
    Tilt warning angle3
    Hydraulic oil tank23L
    Emergency power systemManual operation
    Match
    Lithium batteryOptional
    Solid seamless tireOptional
