Design and Structure
This pipe clamp is a product of the CIFA design, known for its high
- quality and specialized engineering in the concrete pump truck
industry. The CIFA design likely incorporates unique features that
are tailored to the specific requirements of Zoomlion concrete pump
trucks, ensuring optimal performance and compatibility.

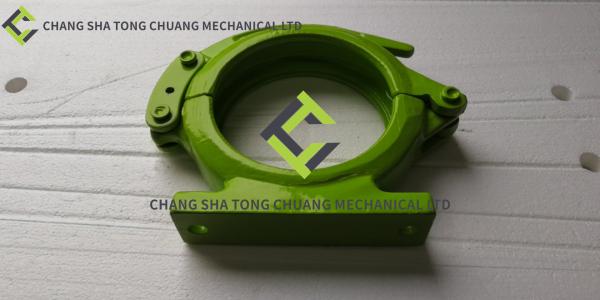

Two - Hole and Base Configuration
Featuring a base and two holes, this pipe clamp is designed for
secure and stable pipe attachment. The base provides a larger
contact area with the pipe and the supporting structure, enhancing
stability and evenly distributing the clamping force. The two holes
are strategically positioned to accommodate bolts or other
fasteners, enabling a firm connection. This design not only ensures
that the pipe is held firmly in place but also allows for easy
installation and adjustment.
Identification Number (K000227598)
The identification number K000227598 serves as a unique identifier
for this particular pipe clamp. It helps in product traceability,
inventory management, and ensures that the correct part is used for
maintenance and replacement. This number also indicates that the
pipe clamp adheres to a specific set of manufacturing standards and
specifications.
Working Principle
Pipe Securement
The primary function of this CIFA pipe clamp is to secure pipes
within the concrete pump truck's pipeline system. When bolts are
inserted through the two holes and tightened, the clamp exerts a
uniform pressure around the pipe's circumference. This pressure
creates a strong frictional force that prevents the pipe from
moving, vibrating, or disengaging during the operation of the pump
truck. This is crucial as the pipeline system is subjected to high
- pressure concrete flow and mechanical vibrations.
Vibration Absorption
The base of the pipe clamp also plays a role in vibration
absorption. As the concrete pump truck operates, the pipes can
experience significant vibrations. The design of the base, along
with the material properties of the clamp, helps to dampen these
vibrations. This not only protects the pipe from damage due to
excessive vibration but also contributes to the overall stability
of the pipeline system.
Performance Features
High - Strength Clamping
Constructed from high - quality materials, this CIFA pipe clamp
offers high - strength clamping capabilities. It can withstand the
substantial forces exerted by the flowing concrete and the
mechanical stresses during the pump truck's operation. The robust
construction ensures that the pipe remains securely fastened,
preventing leaks and maintaining the integrity of the pipeline
system.
Corrosion Resistance
Given the harsh working environment of concrete pump trucks, which
may include exposure to moisture, concrete chemicals, and other
corrosive substances, the pipe clamp is designed with corrosion -
resistant properties. This helps to extend its service life, as it
can resist rust and other forms of corrosion, ensuring consistent
performance over time.
Compatibility
As a part of Zoomlion's concrete pump truck accessories, this CIFA
pipe clamp is highly compatible with the existing pipeline
components. It is designed to fit seamlessly into the overall
system, allowing for easy integration. This compatibility
simplifies maintenance and replacement procedures, as technicians
can quickly and efficiently swap out the pipe clamp when needed.
